Hall Open-loop Current sensor
Hall Open-loop Current sensor

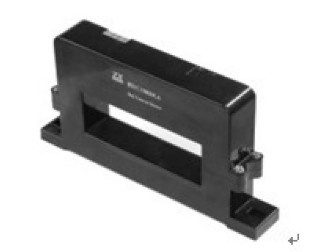

Product name : Hall Open-loop Current sensor
Item : HOC-02
Details :
Electrical Parameters：
TYPE
HDC-
800KA
HDC-
1000KA
HDC-
2000KA
HDC-
3000KA
HDC-
5000KA
parameter
sign
Primary nominal
 r.m.s. current
IPN
800A
1000A
2000A
3000A
5000A
Primary current
measuring range
IP
0～1600A
0～2000A
0～3000A
0～4500A
0～7500A
Secondary nominal
RMS voltage
VSN
4V or 5V
Supply voltage
VC
±15V
Zero offset voltage
@IPN =0,TA = 25°C
V0
<±20mV
Thermal drift of offset voltage
@IPN =0
VOT
within±1mV/°C
Linearity of VSN at
IPN =F.S
εL
within±1%F.S
Response time
Tr
<10μs
R.m.s. voltage for
AC isolation test
Vd
6KV/50Hz/1min
accuracy
X
<±1%F.S
Frequency bandwidth
f
DC～20KHz(-3dB)
Current consumption
Ic
<20mA
Load resistance
RL
≥1 kΩ
Ambient operating
temperature
Ta
-10～+80°C  E:-40～+85°C
Ambient storage
temperature
Ts
-25～+85°C   E:-45～+105°C

Structural Parameters：
Features
1.Opened loop (compensated)  multirange current sensor
using the Hall effect
2.Voltage supplies
3.Very low temperature drift
4.Wide frequency bandwidth
5.High immunity to external  interference

Applications
1.AC variable speed drives
and serve motor drives
2.Uninterruptible Power
Supplies (UPS)
3.Battery supplied applica-
tions
4.Power supplies for welding  applications
