Hall Open-loop Current sensor
Hall Open-loop Current sensor

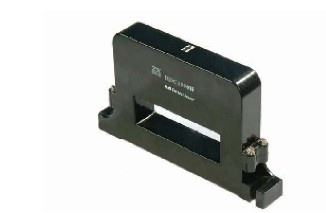

Product name : Hall Open-loop Current sensor
Item : 3000A
Details :

Electrical Parameters：
TYPE
HDC-
600H
HDC-
1200H
HDC-
1800H
HDC-
2400H
HDC-
3000H
parameter
sign
Primary nominal r.m.s. current
IPN
600A
1200A
1800A
2400A
3000A
Primary current measuring range
IP
0～1200A
0～2400A
0～3600A
0～4800A
0～6000A
Secondary nominal
RMS voltage
VSN
4V±1%
Supply voltage
VC
±15V±5%
Zero offset voltage@IPN=0,
TA = 25°C
V0
within±25mV
Thermal drift of offset
voltage@IPN =0
VOT
within±1mV/°C
Linearity of VSN at IPN=F.S
εL
within±1%F.S
Response time
Tr
<10μs
R.m.s. voltage  for
AC isolation test
Vd
6KV/50Hz/1min
Ambient operating temperature
Ta
-10～+70°C  E:-40～+85°C
Ambient storage temperature
Ts
-40～+85°C   E:-55～+125°C

Structural Parameters：
Features
1.Opened loop (compensated)  multirange current sensor
using the Hall effect
2.Small size and space saving
3.Low power consumption
4High immunity to external  interference

Applications
1.AC variable speed drives and
serve motor drives
2.Uninterruptible Power Supplies (UPS)
3.Power supplies for welding  applications.
4.Switched Mode Power

Pin Identification
1：+15V
2：GND
3：-15V
4：void
5：VOUT
