Split Core Current Transformer SCT 333mV Secondary Output

The SCT series of split core current transformer are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary

Features

Low cost.
Split core design;safer,easier installation,portable.

Specifications

●Rated Current 5A to 3000A loads.
●Rated output: 0.333Vac
●Accuracy:±1% from 5% to 120% of rated current
●Phase Angle: less than 2 degrees at 50% of rated current
●Insulation Voltage:600Vac
●Maximum Primary Voltage:5000Vac(Insulated Conductor)
●Operating Temperature:-15℃to 60℃.
●Frequency Range:50-400Hz
●Leads:4Foot(105cm),UL 1015,Twisted Pair,0.34 mm²(22AWG)

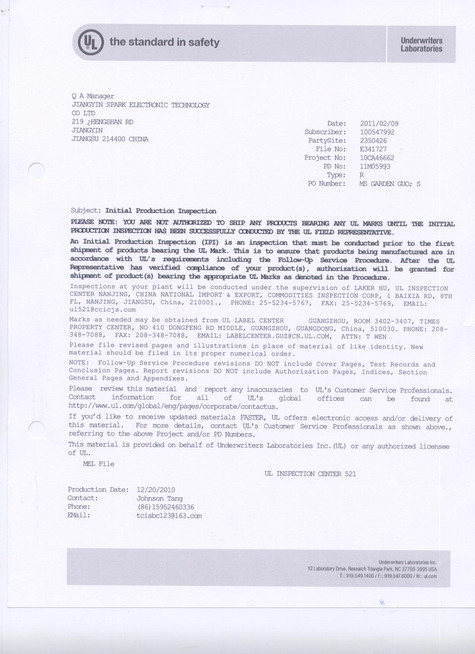

●UL&CE,ETL recognized. RoHS Compliant
● Output and leads can be customized

Application

Measures AC current flow to electric motors, lighting, air conditioning equipment, etc.Compatible with HVAC temperature control, power management,building automation systems.
