Hall Closed-loop Current Sensor
Hall Closed-loop Current Sensor
Product name : Hall Closed-loop Current Sensor
Item : Hall Closed-loop Current Sensor
Details :
Electrical Parameters：
TYPE
HNC-661
HNC-662
parameter
sign
Primary nominal r.m.s. current
IPN
50A/DC
100A/DC
Primary current measuring range
IP
0～±90A/
DC
0～±150A/DC
Secondary nominal
RMS current
ISN
50mA±0.5% at IPN =F.S
Supply voltage
VC
±12V～±15V DC ±5%
Zero offset current@IPN =0,TA = 25°C
I0
within ±0.2mA at
IPN =0
Within ±0.15mA at IPN =0
Thermal drift of offset current@IPN =0
I0T
within ±0.5mA
within ±0.4mA
Linearity of VSN at IPN =F.S
εL
within ±0.1% of
IPN at IPN =F.S
within ±0.1% of
IPN at IPN =F.S

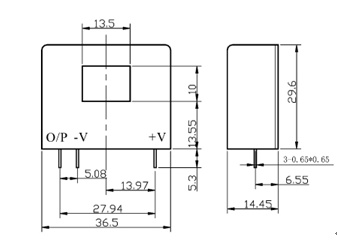

Structural Parameters：
Features
1.Opened loop (compensated) multirange current sensor
using the Hall effect
2.High accuracy
3.Very low temperature drift
4.Wide frequency bandwidth
5.High immunity to external interference

Applications
1.AC variable speed drives
and serve motor drives
2.Uninterruptible Power
Supplies (UPS)
3.Battery supplied applica-
tions
4.Power supplies for welding applications.
